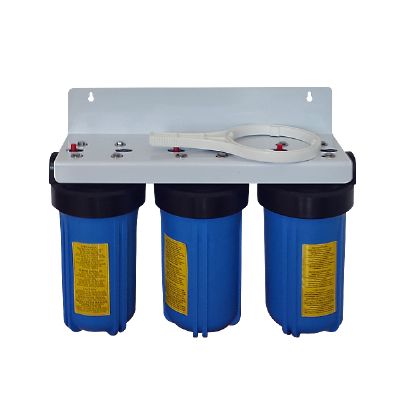

Makes a neat installation and saves space. Housings can take any combination of Large Diameter Big Blue 10in Filters to achieve the desired filtration requirements

SPECIFICATIONS
Max flow through empty housing: * Approx 76 l/m at 3 bar (42psi)
Min pressure:- Approx 2 Bar (28psi)
Max pressure:- 6.8 Bar (100 psa)
Max water temp:- 20oC Water, 30oC ambient
Inlet / Outlet:- 1'' Bsp female
Housing material:- Polypropylene
Colour:- Blue
Filters cartridges:- 10 inch nominal x 4.5in Diameter. Referred to as BB - Big Blue

Height:- 350 mm(470mm With Bracket)
Width 570mm
Depth:- 200 mm
