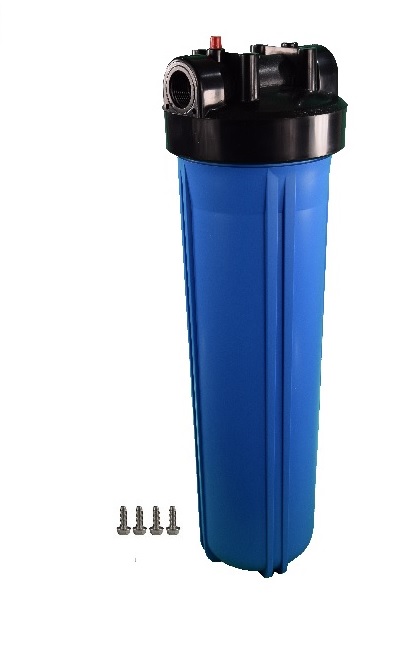

Wrekin Water HF20BB/HOUSING - 20in High Flow Jumbo 1in BSP Ports (Housing Only) full details...

Wrekin Water HF20BB/HOUSING - 20in High Flow Jumbo 1in BSP Ports (Housing Only) full details...

Wrekin Water
  • Top Quality High Flow Filter Housing for 20in Large Diameter Cartridges
  • 1'' BSP female inlet/outlet ports
  • Pressure Release valve
  • Housing Only
  • Takes a 4.5in (115mm) Diameter Cartridge (BB) x 20in
Related products:- Filter Housings - Click to see all 20in BB High Flow Housings - Click to see all
20in BB Carbon and Media Filters - Click for full details
20BB Sediment Filters - Click for full details
Full range of 20in High Flow Housings - Click for full details
Product options:-
*Incl. standard delivery to all UK Mainland Postcodes. (Excl. Highlands)
Code Details *Price Incl VAT
HF20BB Housing High Flow 20in Jumbo (BB) housing with Pressure Release (Housing Only) with Screws £72.00
(£60.00 Ex VAT)

*Incl. standard delivery to all UK Mainland Postcodes. (Excl. Highlands) If you are ordering from outside the UK, please call us on +44(0)1948 710699 for our most competitive shipping rate Product details:-
High flow filter housing with 1” inlet and outlet ports
accepts any 20” High Flow BB cartridge. The unit has an air release mechanism to relieve water pressure when changing cartridges. A support bracket is supplied as standard. It is recommended that isolating valves are fitted either side of the unit so that the supply of water to the housing may be turned off when a filter change is required. The installer needs to supply the fittings MI 1" x 22mm or 1" x 28mm Couplers for connection to adjoining pipework. Fit on cold water lines only. Protect from freezing.

SPECIFICATIONS
Max flow through empty housing: * Approx 97 l/m at 3 bar (42psi)
Min pressure:- Approx 2 Bar (28psi)
Max pressure:- 6.8 Bar (100 psa)
Max water temp:- 20oC Water, 30oC ambient
Diameter:- 182 mm
Height:- 650 mm
Inlet / Outlet:- 1'' BSP female
Housing material:- Polypropylene
Colour:- Blue
Filters cartridges:- 20 inch nominal x 4.5in Diameter. Referred to as BB - Big Blue


* Flow rate through housing
The maximum flow rate shows the flow through an empty housing. The flow will decrease
according to the type of cartridge installed and the water supply pressure.
